Cryptic Codes and Canon Lenses

As I have enough camera gear that a standard travel insurance will not cover it, I bought a special insurance just for the camera and associated bits and pieces. They require that I provide serial numbers for every item that is worth more than £200. So when I recently acquired a new EF 15mm f/2.8 Fisheye lens, I decided to add it to the insurance policy and went in search of the serial number. On the box, there is a sticker that specifies a serial number but, at first sight, it looks nothing like any of the codes on the lens itself. To start with, the lens has two codes: a numeric one and an alphanumeric one. Which one is the right one? After some digging on the net, I had the answer, so here's an illustration of it, with a couple of my lenses.

The numeric code is the actual serial number. On the EF 15mm f/2.8 Fisheye lens, it is located on the barrel, near the camera mount. On the EF24-105mm f/4 L IS USM lens, it is located on the bayonet flange.

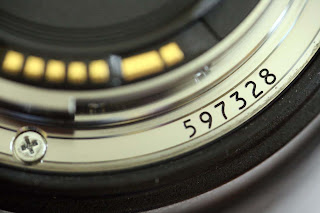

Serial number on the barrel of the EF15mm f/2.8 Fisheye lens Serial number on the bayonet of the EF24-105mm f/4 L IS USM lens

Serial number on the EF15mm f/2.8 Fisheye and the EF24-105mm f/4 L IS USM

That same number is also available on the box the lens came in. On that box, there is a sticker with a bar code and a couple of numeric codes, with the title Lens No. At first sight, none of the codes on the sticker seem to really match what's on the lens. But looking closer, it appears that the serial number is the end part of the bottom code. It all makes sense now! What the other codes mean, I don't have the faintest idea.

Lens No sticker with serial number circled

Lens No sticker with circled serial number

I also found an explanation for the alphanumeric code that can be found on the lens. This is a manufacturing code. My fish-eye lens has a code that says UV0509.

  • The first letter, U, identifies the factory that produced the lens: Utsunomiya, in Japan.
  • The second letter, V identifies the year the lens was manufactured: 2007.
  • The following two digits identify the month the lens was manufactured: May.
  • The last two digits are an internal Canon batch number.
This manufacturing code enables Canon to identify a batch of lenses. For example, the first batches of the EF24-105mm f/4 L IS USM lens had an optical defect that produced serious flares. This code on the lens enabled owners to identify whether their lenses were part of any defective batch so that they could return it to Canon.

Manufacturing code on the EF15mm f/2.8 Fisheye lens

Manufacturing code on the EF15mm f/2.8 Fisheye

So there you go, that's what all those numbers mean on Canon lenses. I can now fill in my insurance policy properly.
